Custom Precision Electric Car Wire Harness Terminal Connector Plastic Moulds

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.Custom
MaterialHigh Carbon High Chromium Tool Steel
Processing MethodPunching and Shearing Mould
TechnicsMachining Die
Process CombinationComposite Mould
Manufacturing TechnologyComputer Technology
Driving Motor TypeNo Motor
Mold Cavity TechnologyCNC Milling
Milling SpeedHigh Speed
Parts Detection MethodGeometric Detection
After-sales ServiceRemote Technical Guidance
Die Life300,000 Shots
InspectionCMM, 100% Test
Package Size100.00cm * 100.00cm * 100.00cm
Package Gross Weight10.000kg
Production Capacity10,000 pieces/Year

Product Description

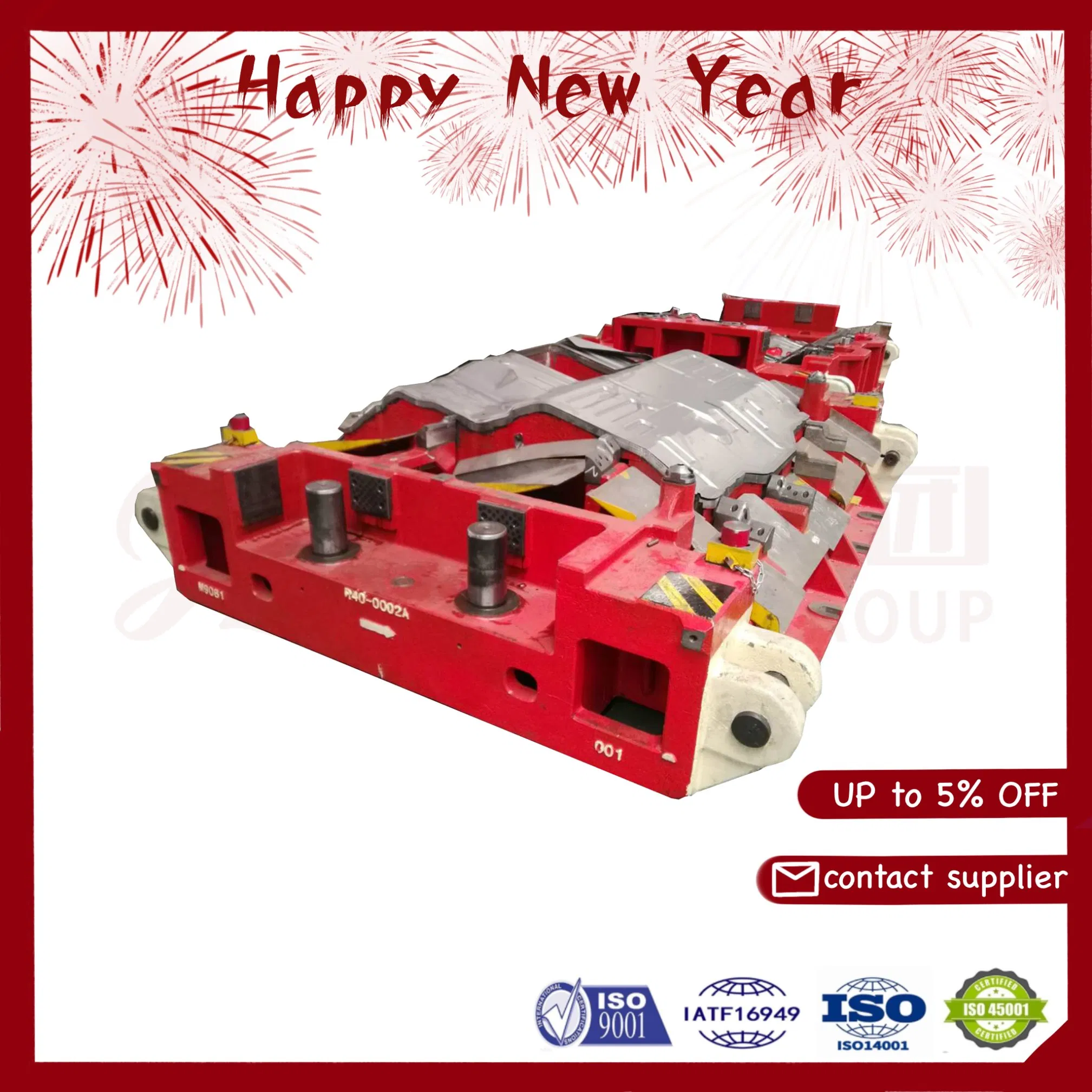

Product Name Machine Tool metal stamping punching die for automotive auto parts body panel
Material #45 steel, 7CrSi, Cr12MoV
Process Machining & assembly
Surface Treatment CNC machining & Paint
Certification ISO9001, IATF16949, ISO14001, ISO45000, CCC
Application Punching/stamping mould for Auto stamping parts, Press Machine Tonnage 30T-2400T, last 1,000,000 shots
Packing Plastic + Carton/ Plywood case + Pallet
Product Advantages:
  • High dimensional accuracy
  • Strict high surface quality
  • Structural rigidity
  • Good processing technology of complex surface
  • Superior Material Usage

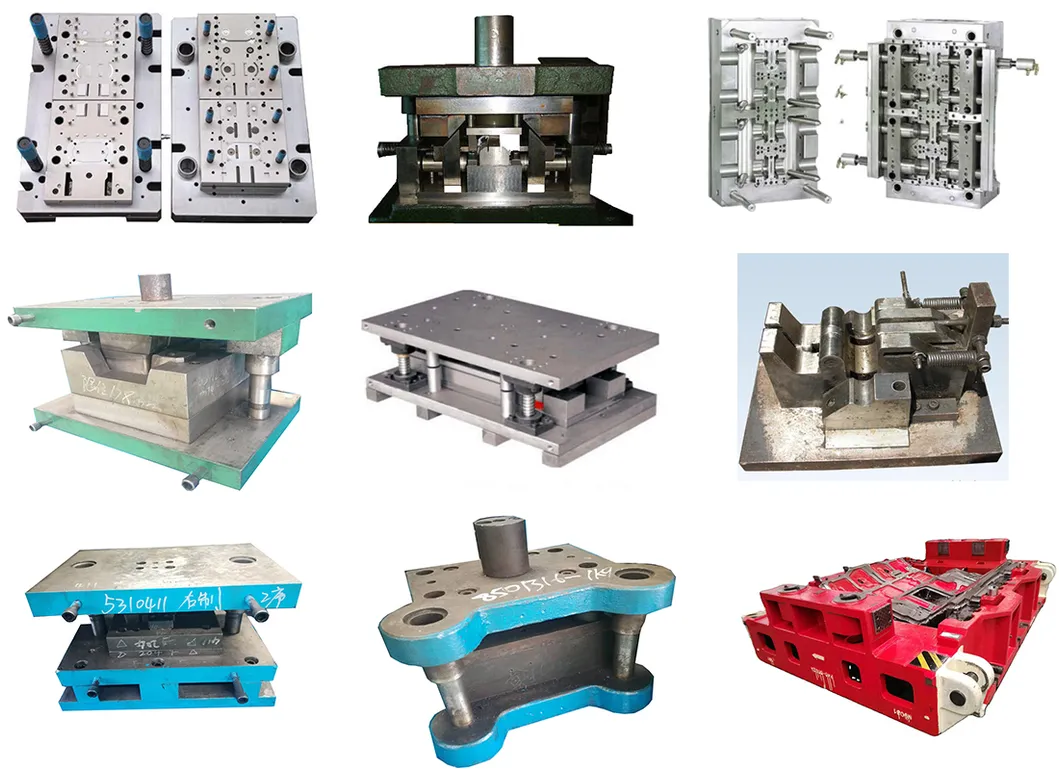

Automotive Stamping Die
📷

Detailed Photos & Working Process

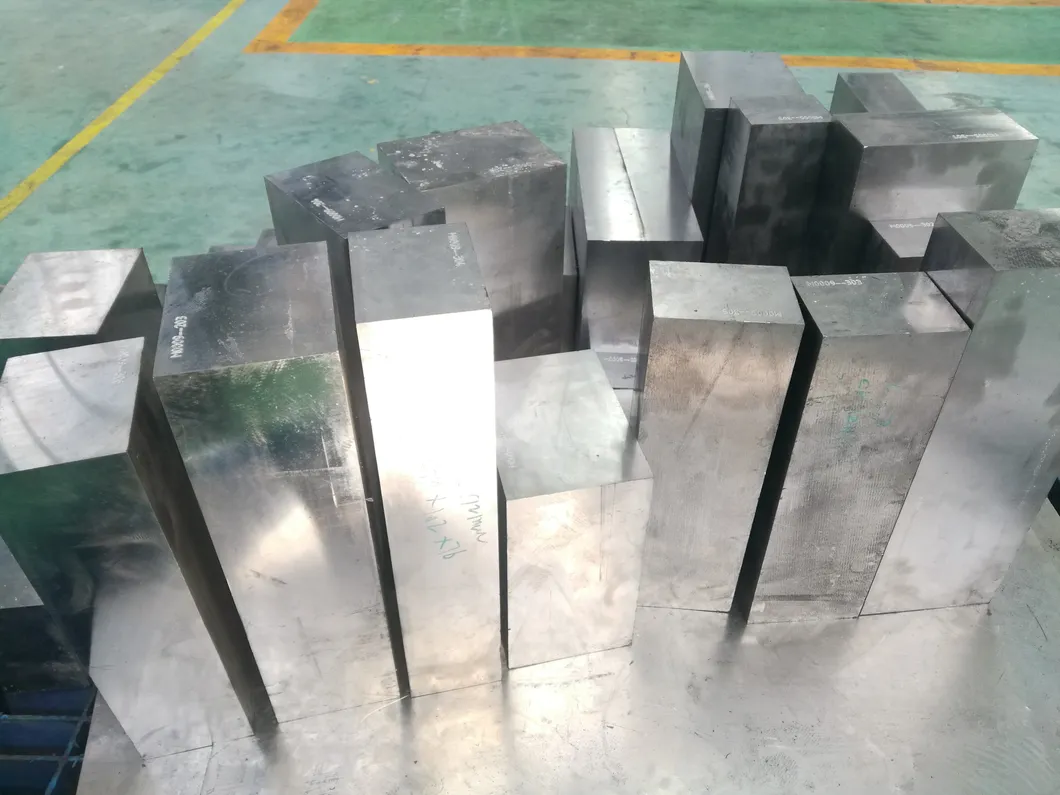

Mold Detail 1

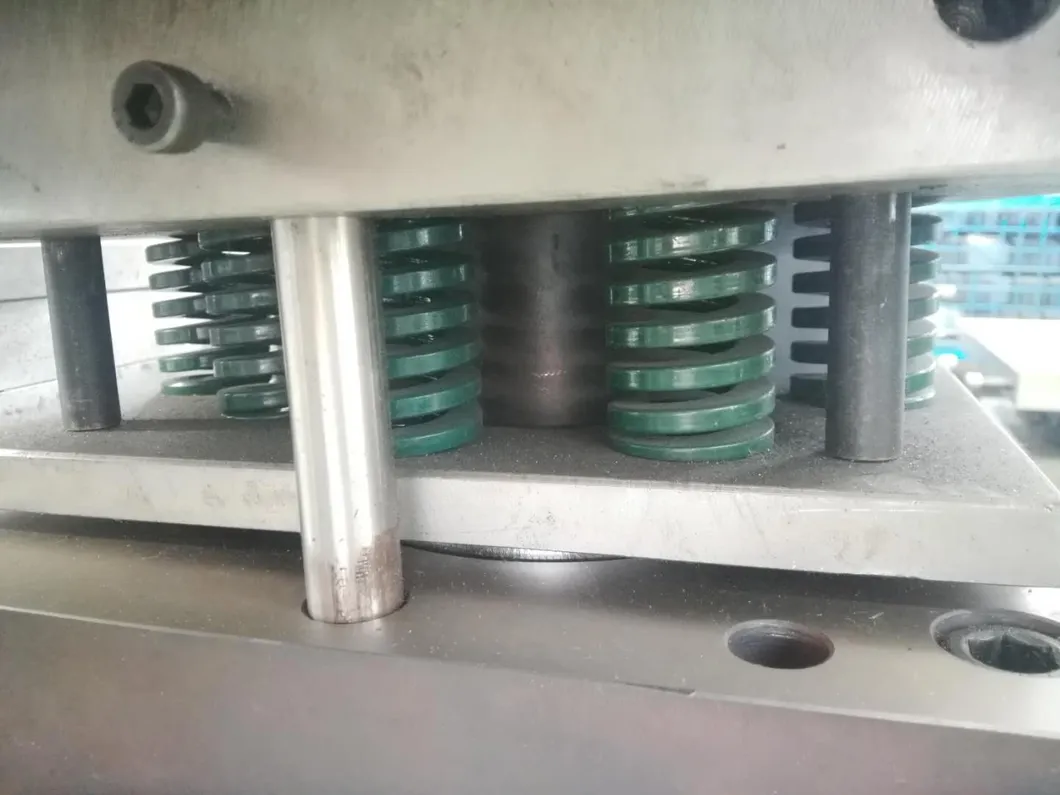

Mold Detail 2

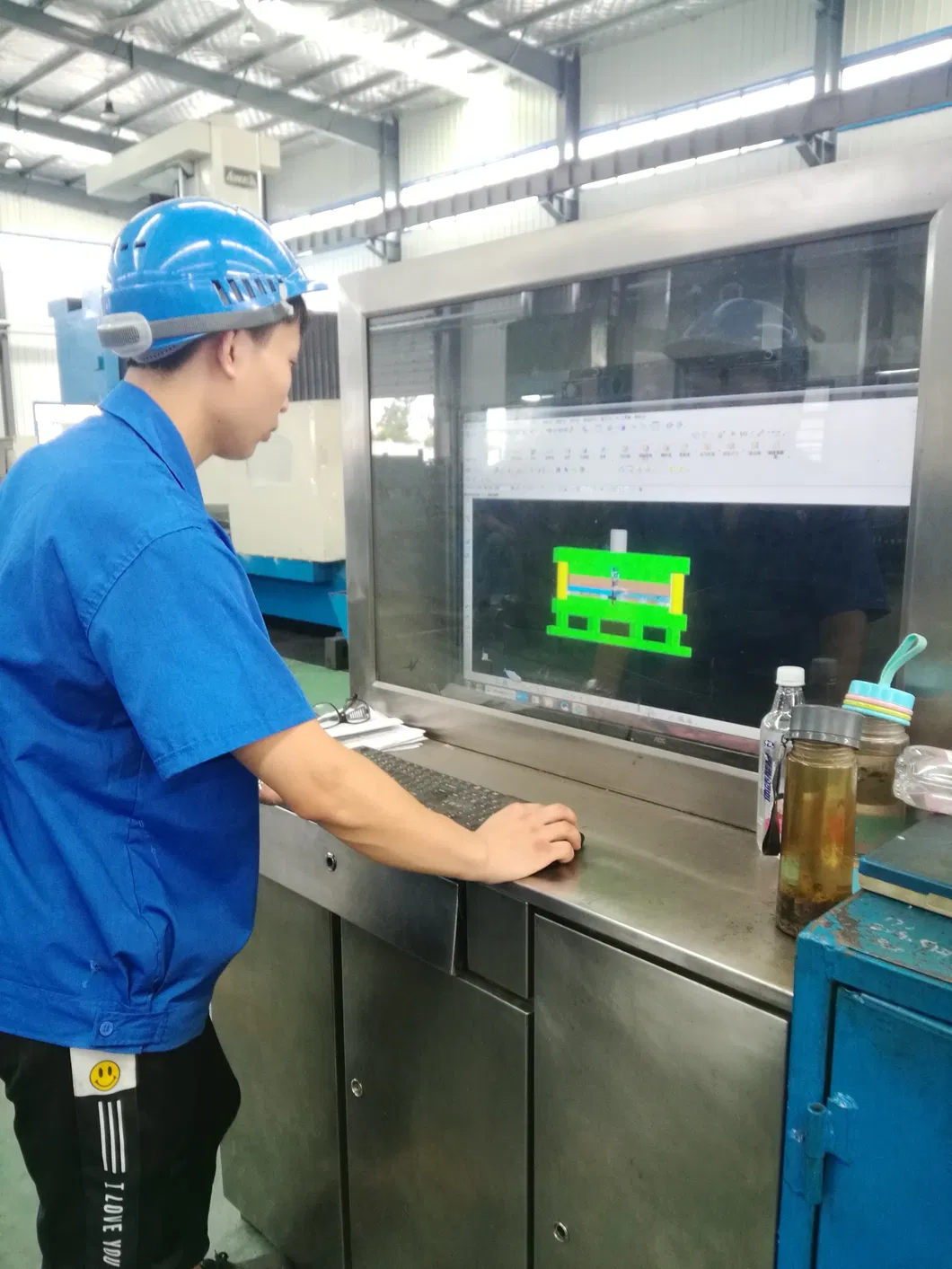

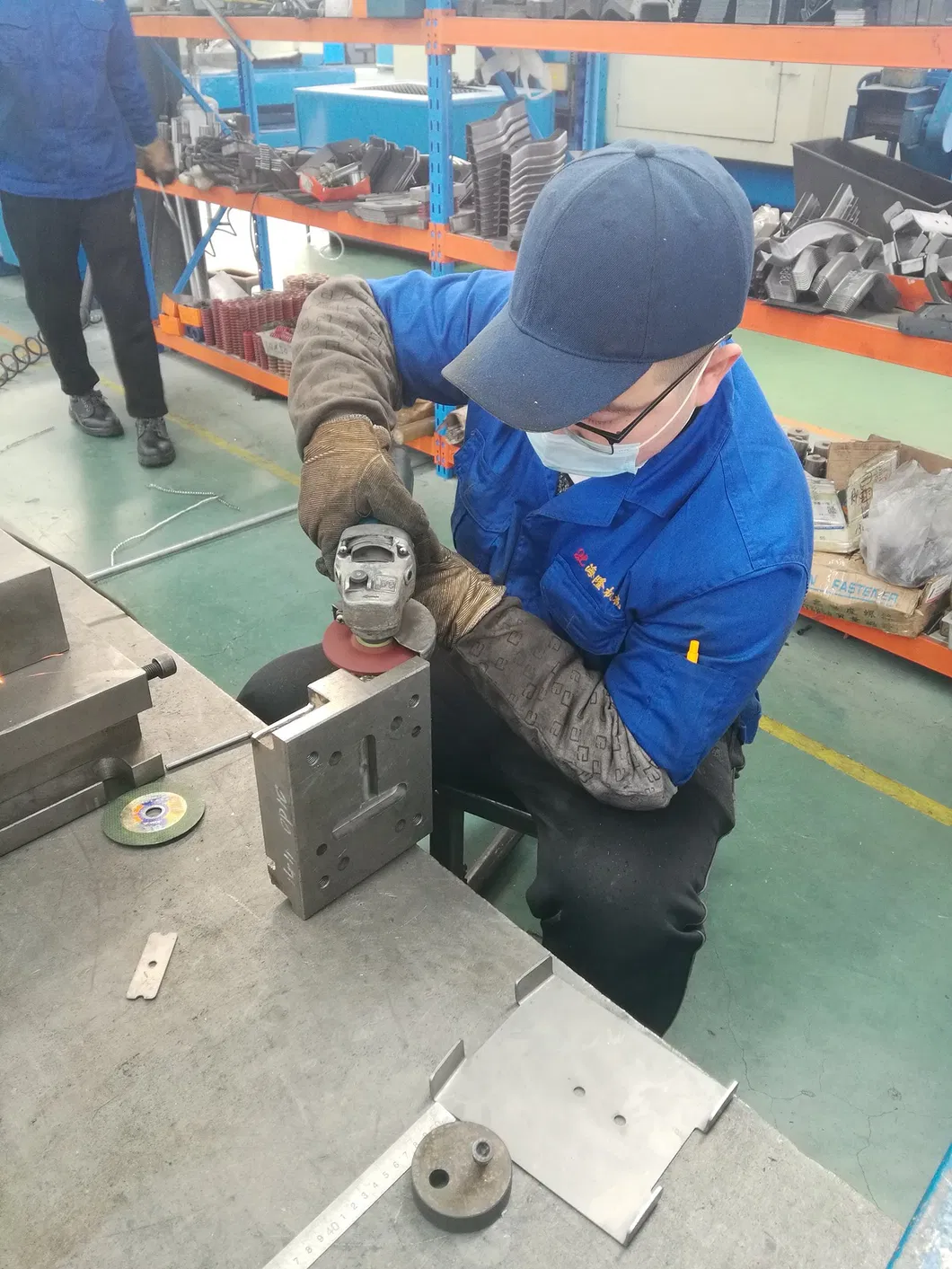

Process 1
Process 2

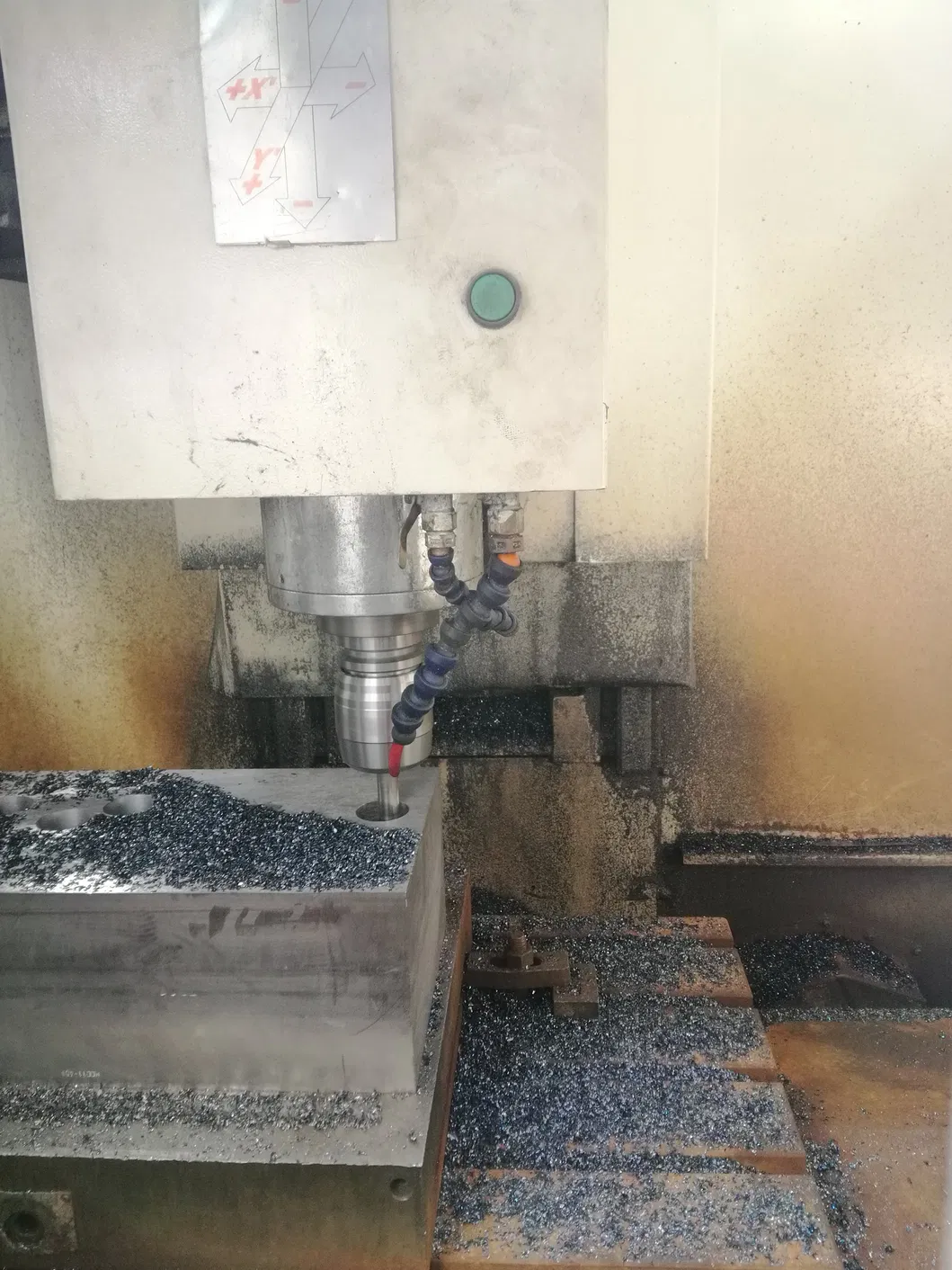

Process 3

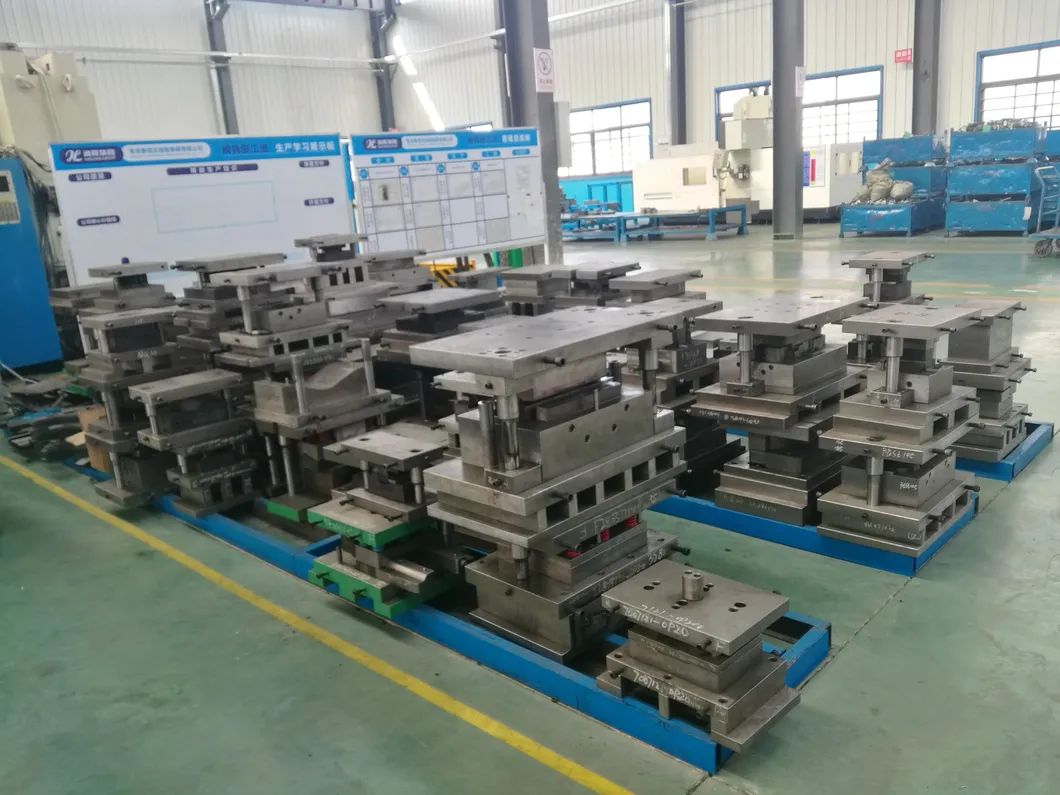

Factory Machine

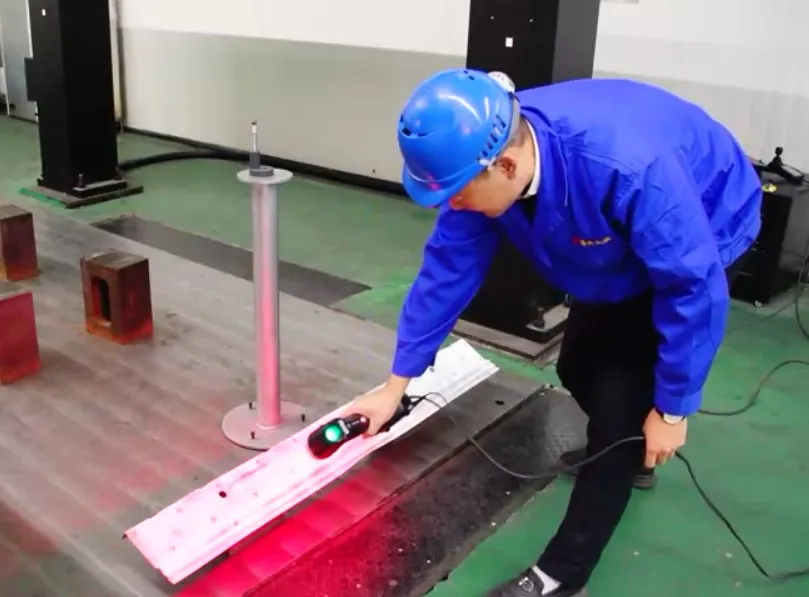

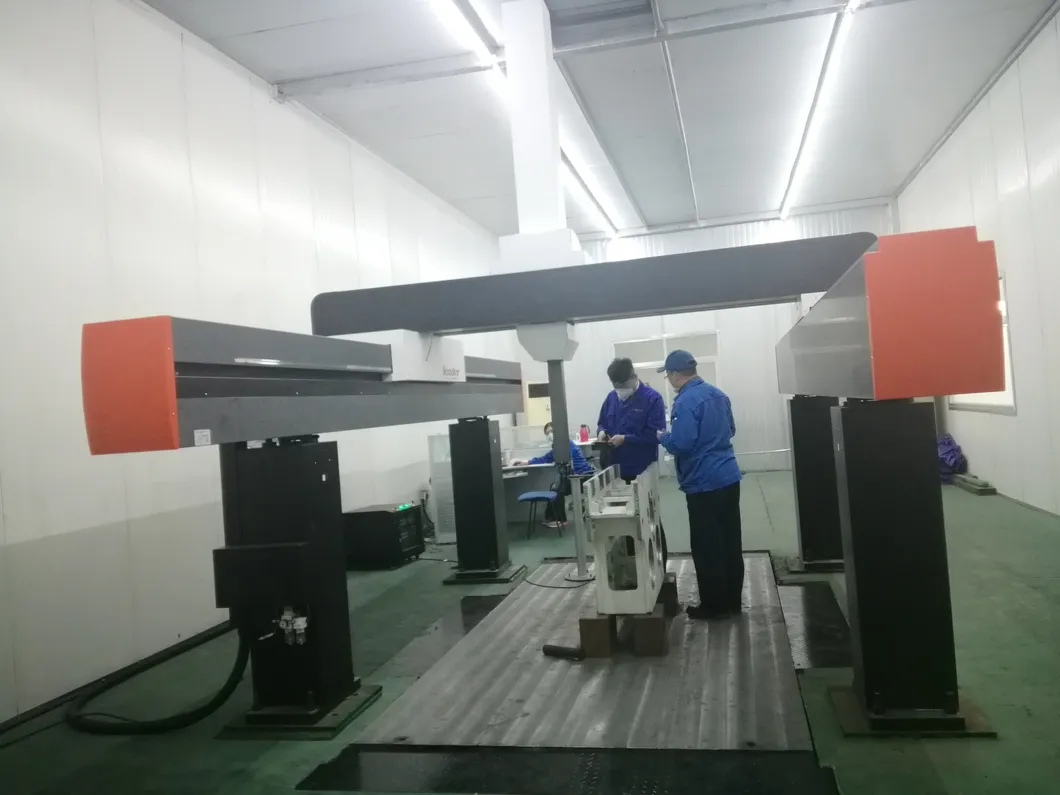

Inspection 1
Inspection 2
Inspection 3
📜

Certifications

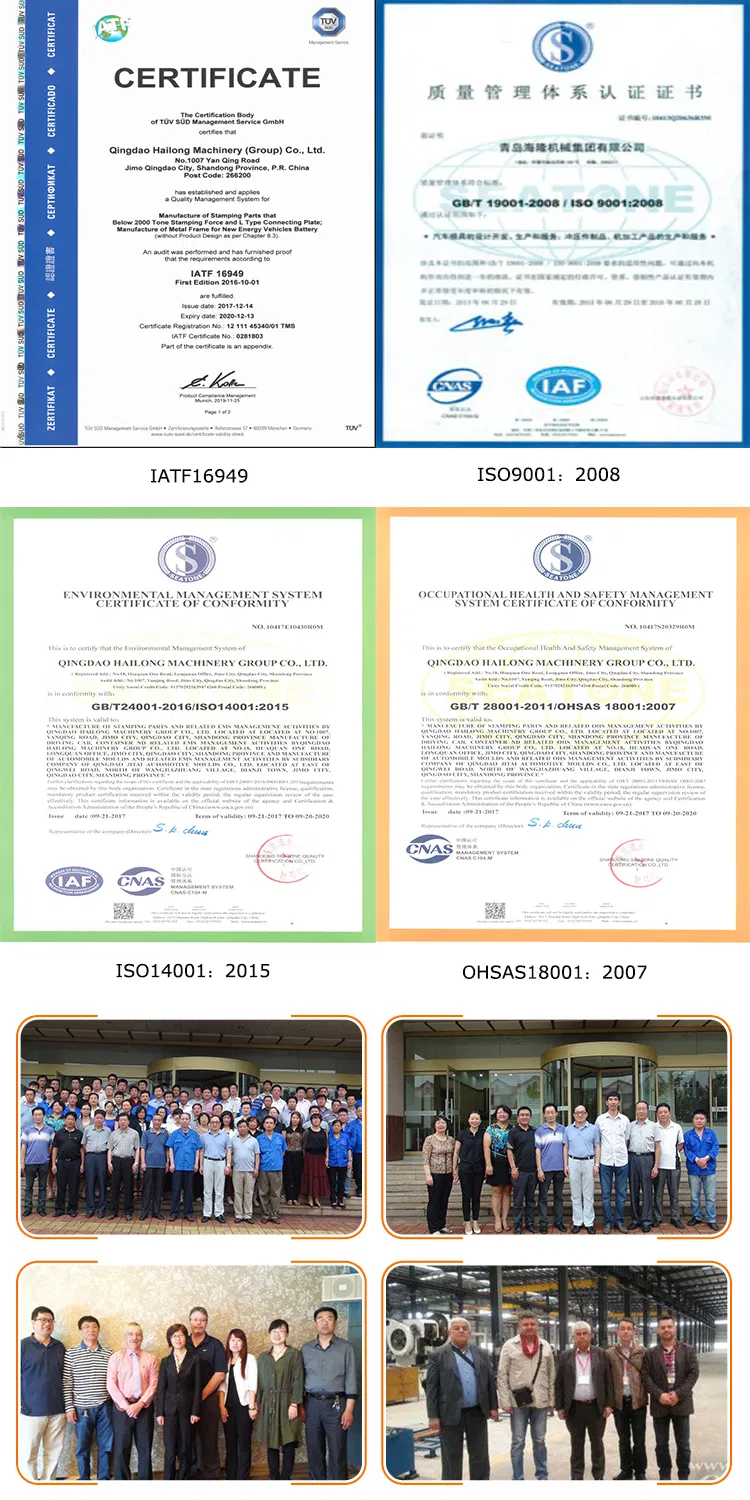

Quality Certifications
  • ISO9001-2008 International quality management system certification
  • IATF16949:2009 Quality management system certification
  • ISO14001:2015 Environmental management system certification
  • OHSAS18001:2007 Occupational health management system
  • CCC: China Compulsion Certification(3C)
📦

Packaging & Shipping

Shipping Package
🏢

Company Capability

Established in 2000, the manufacturing facility spans a total area of more than 500,000 square kilometers across 5 specialized factories. We maintain a full chain production capacity including molding, stamping, welding, assembling, and coating.

Key Equipments:

  • Large-scale press equipments (160T-2400T tonnage)
  • ROBOT welding and binding lines
  • JAPANESE OKUMA CNC machining centers
  • Electrophoresis and painting lines
  • Advanced detection: Three coordinate measuring instrument, Spectral analysis
?

Frequently Asked Questions

What materials are used for the stamping dies?
We use high-quality materials including High Carbon High Chromium Tool Steel, #45 steel, 7CrSi, and Cr12MoV to ensure durability and precision.
What is the typical lifespan of your metal stamping dies?
Our dies are designed for longevity, typically ranging from 300,000 shots up to 1,000,000 shots depending on the specific application and material.
Can you handle large-scale automotive body panel projects?
Yes, we have press equipment with tonnage ranging from 160T to 2400T, making us capable of producing large automotive body panels and complex structural components.
What quality standards do your products meet?
Our production process is certified under ISO9001, IATF16949, ISO14001, and we perform 100% testing using CMM and geometric detection methods.
Do you provide OEM/ODM services?
Yes, both OEM and ODM services are available according to the clients' specific requirements and technical drawings.
How are the products packaged for international shipping?
We use non-fumigation crates, plywood cases, and pallets with plastic wrapping to ensure the molds are protected from moisture and damage during transport.
