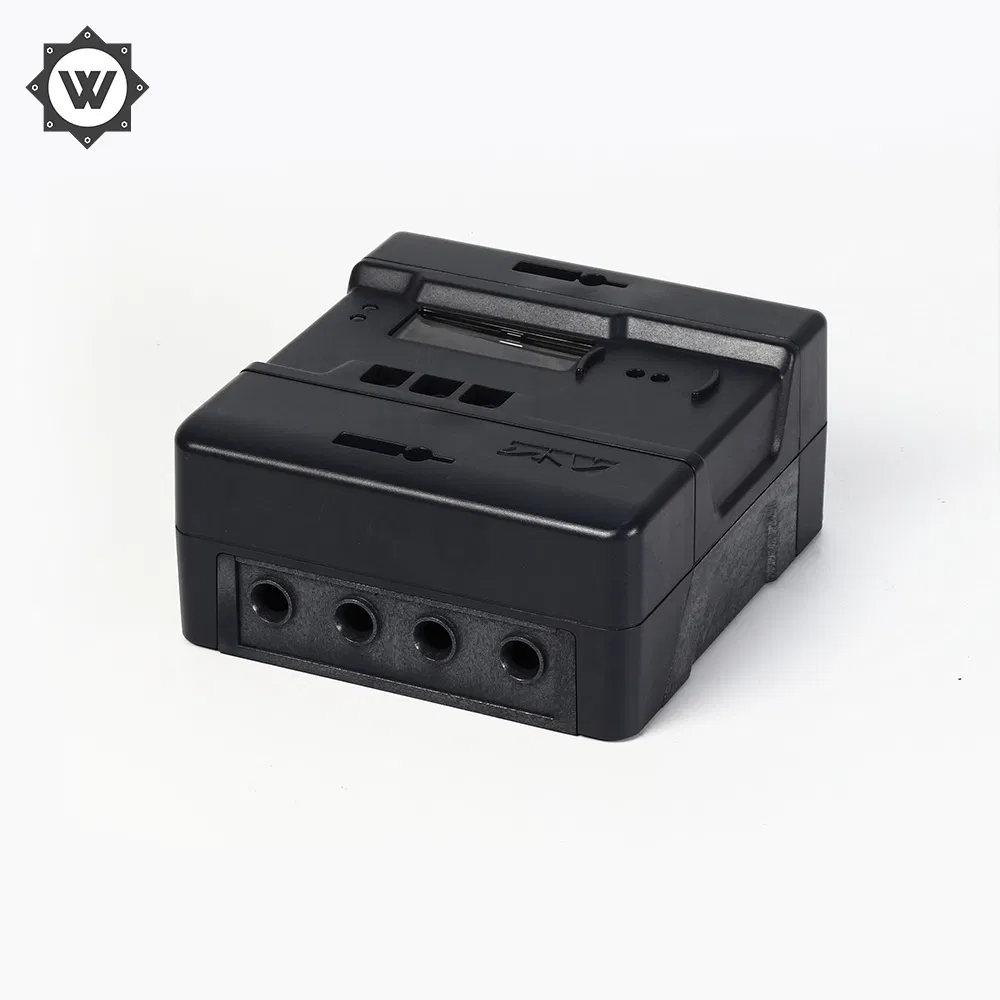

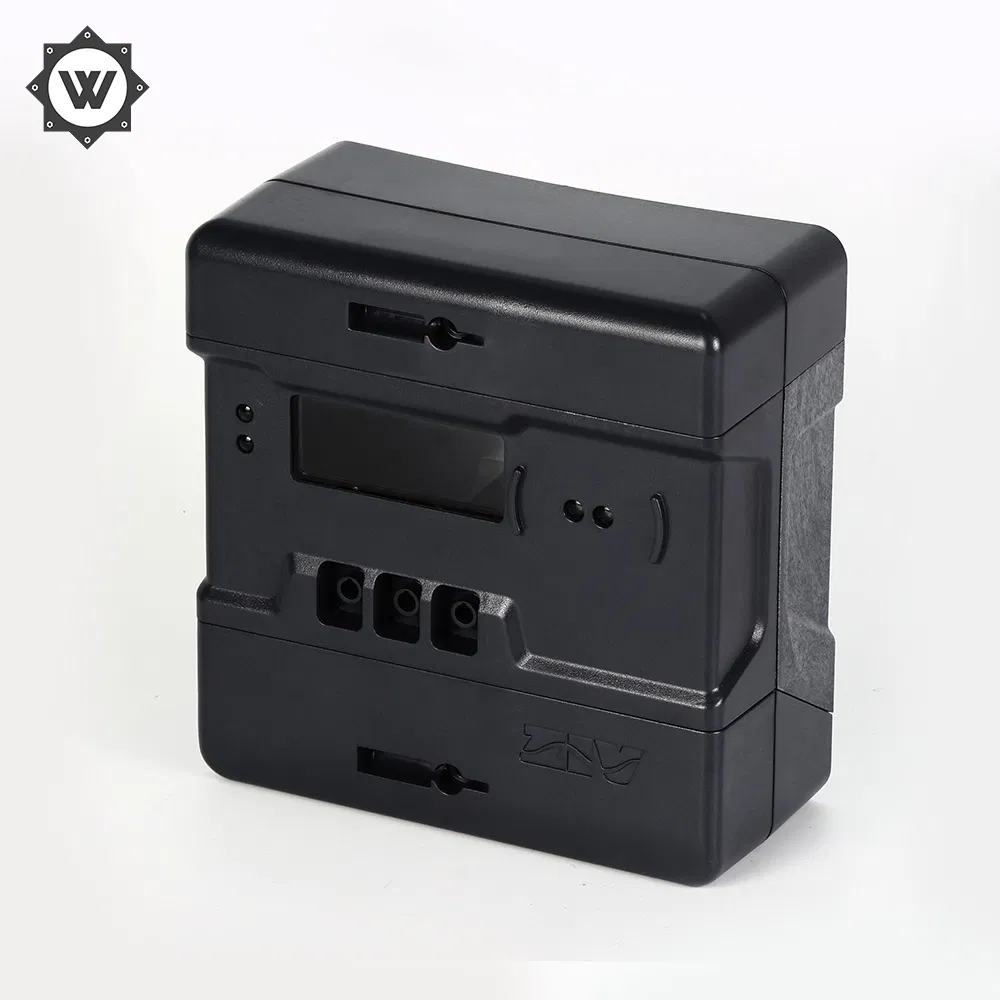

Precision Cold Runner Molding Electrical Plastic Injection Mold for Commodity

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO. Plastic Injection Molding Ww-044

Mould Cavity Single Cavity

Plastic Material PE

Application Car, Household Appliances, Furniture, Commodity

Runner Cold Runner

Design Software UG, CAD, PRO-E, Solid Works

Certification TS16949, CE, ISO, FDA

Mould Life 50K - 1 Million Cycles

Steel Hardness 20-60HRC

Production Capacity 500 Molds/ Year

Precision Cold Runner Molding

Cavity Material	1.2738, 1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407, S136, Calmax 635 NAK80, SKD-61, NIMAX, 45#, 50#, Aluminum for prototype mold etc.
Runner	Cold runner or Hot runner : YUDO/ HUSKY/ MOLD-MASTER/ SYNVENTIRE/ INCO/ MASTIP/ HASCO/ DME
Gate Types	Submarine gate, tunnel gate, side/edge gate, direct gate, pin point gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate, hot tip, valve gate etc.
Plastic Material	PS, SAN, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU, TPV etc.
Process	CNC, high speed carve, EDM, wiring-cutting, drill, polish etc.
Lead Time	10-30 work days depends on the structure and size of products.

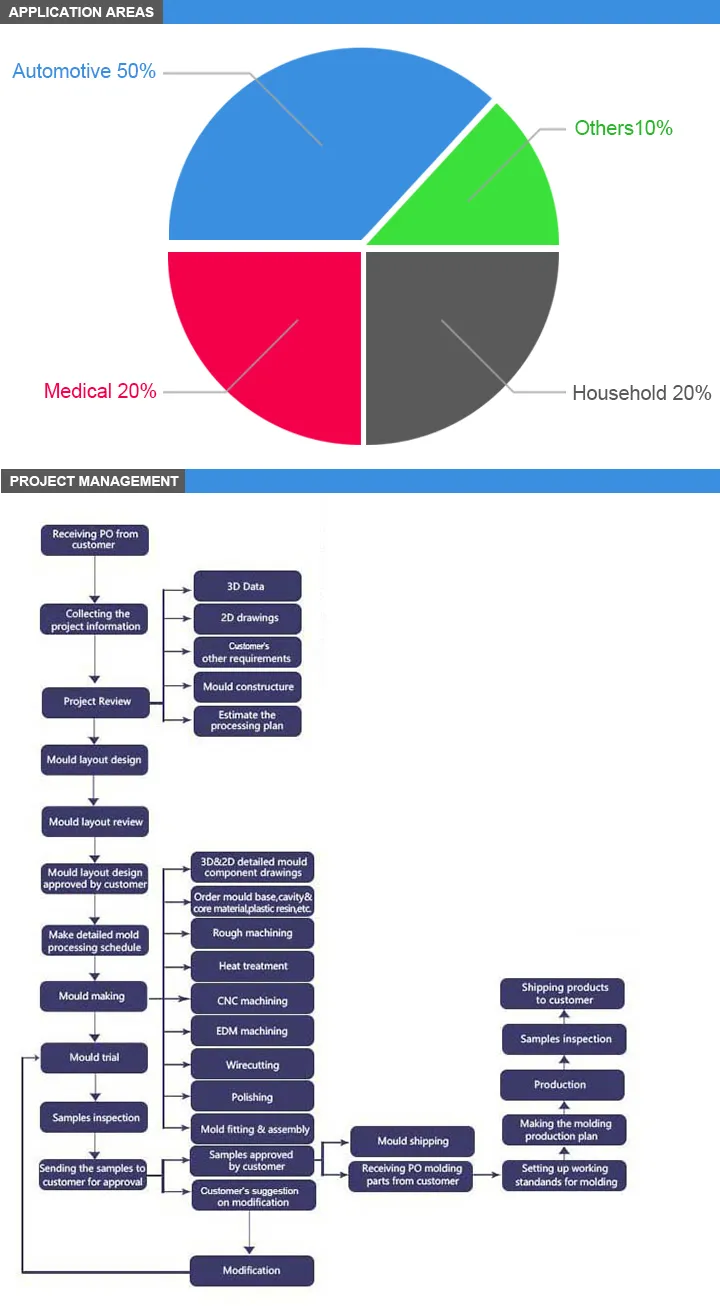

Quality Control & Manufacturing Process

Mold Design Control: Comprehensive review of mold architecture.

Steel Hardness Inspection: Ensuring durability of mold components.

Electrodes Inspection: Precision check for EDM processes.

Core and Cavity Dimension Inspection: Verifying critical dimensions.

Mold Trial & Sample Inspection: Validation through actual production runs.

Pre-Shipment Final Inspection: Comprehensive quality check before dispatch.

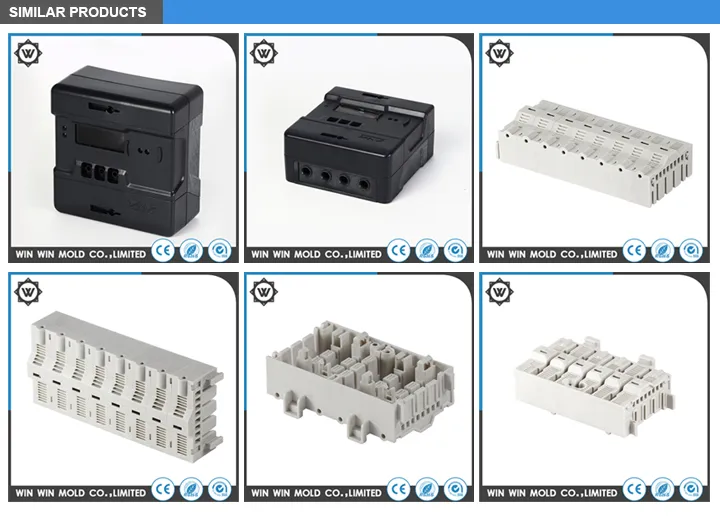

Product Gallery

Our capabilities range from small precision inserts to molds weighing 15 tons, covering single to multiple cavities. We serve a diverse range of industries including Automotive, Household Electrical Appliances, Electronics, Medical, Packaging, and Industrial Tools. With experienced tool makers, we guarantee accuracy and quality in every custom manufacturing project.

Frequently Asked Questions

1. Can you help evaluate the feasibility of a new product idea? Yes! We work with customers to evaluate technical feasibility, advising on materials, tooling, and potential set-up costs for your design.

2. Can you use my existing CAD drawings? Absolutely. We can work with DWG, DXF, IGES, SolidWorks, STP, and X_T files to generate quotes and create mold tools, saving you time and costs.

3. Is it possible to test a component before full mold manufacture? Yes, we can use CAD drawings to create prototype models for design evaluation, functional testing, or market analysis.

4. How do I know which plastic material is best for my design? Material selection depends on the specific application and environment. We are happy to discuss alternatives and suggest the most suitable material for your requirements.

5. What type of mold tool do I need for my project? Molds can be single-cavity for small quantities (up to 10,000 parts/year) or multi-cavity (2-16 parts) for larger volumes. We recommend the best option based on your projected annual needs.

6. How long does it take to get the final molded parts? Manufacturing a mold typically takes 3 to 6 weeks depending on complexity. After design approval, you can expect T1 samples within that same timeframe, with weekly progress updates provided.
