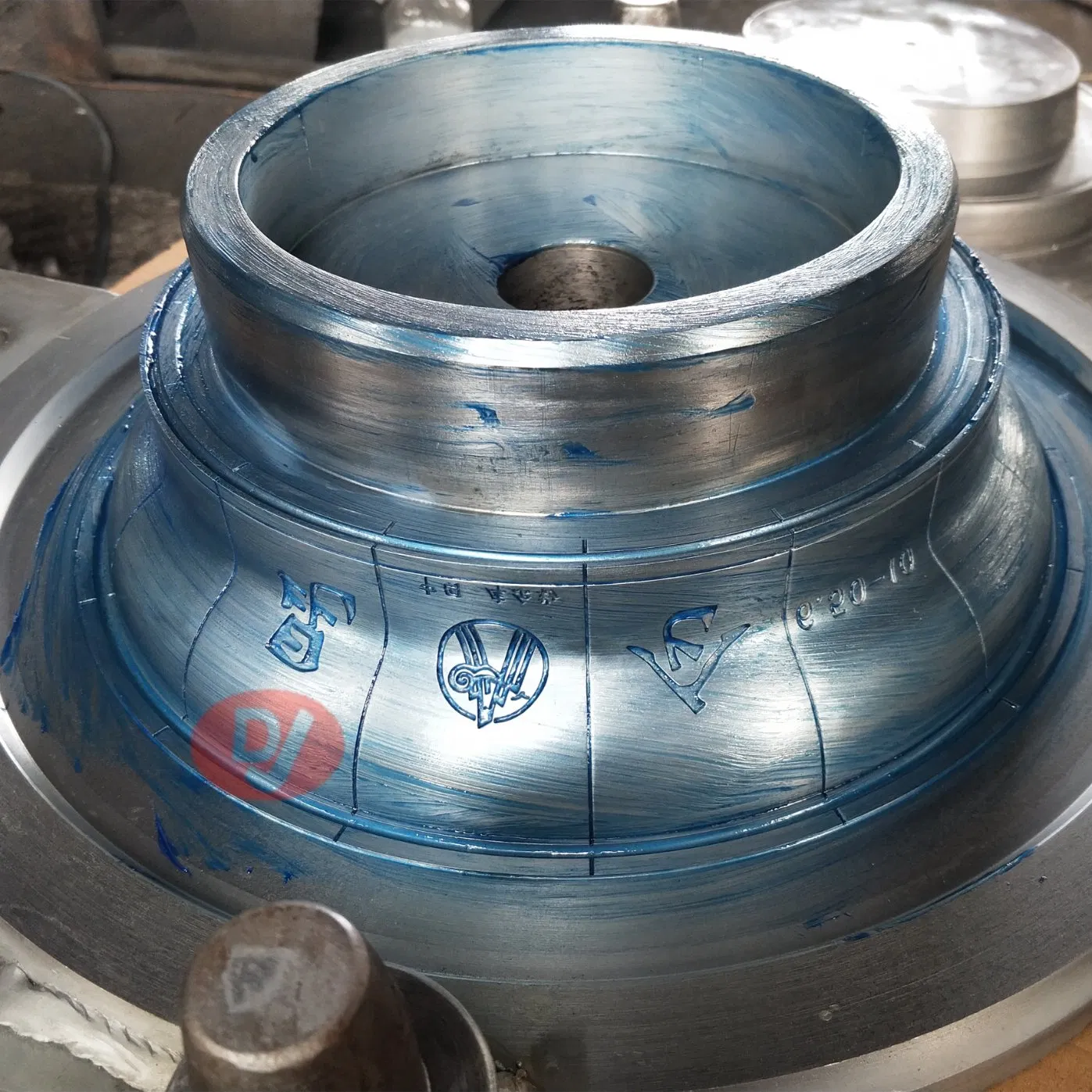

A flap mould is a high-precision metal tool utilized in the manufacturing of rubber flaps. By utilizing advanced vulcanization presses or injection molding machines, these moulds shape rubber material into precise, ring-shaped flaps under controlled heat and pressure.

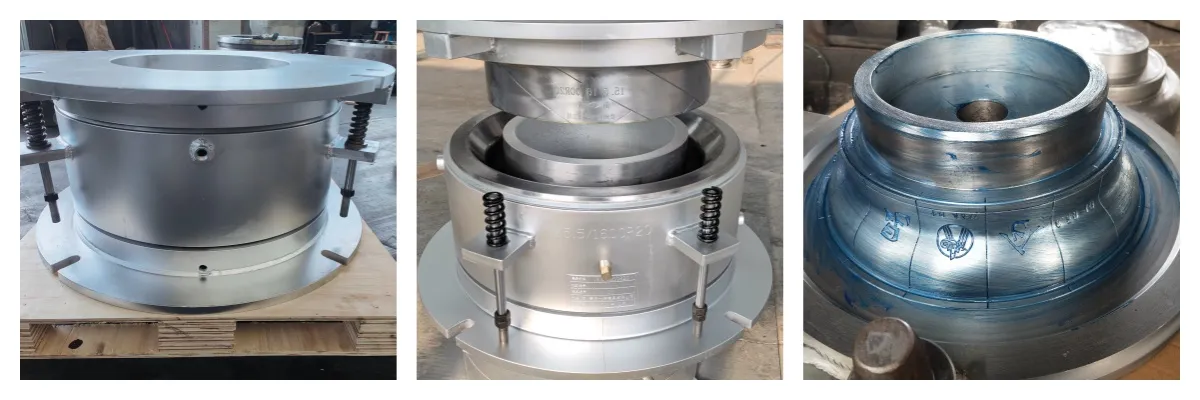

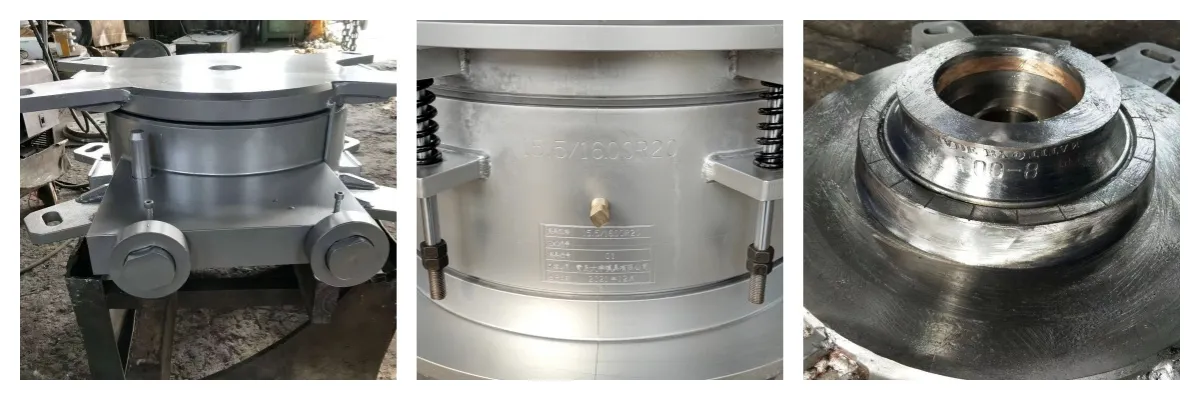

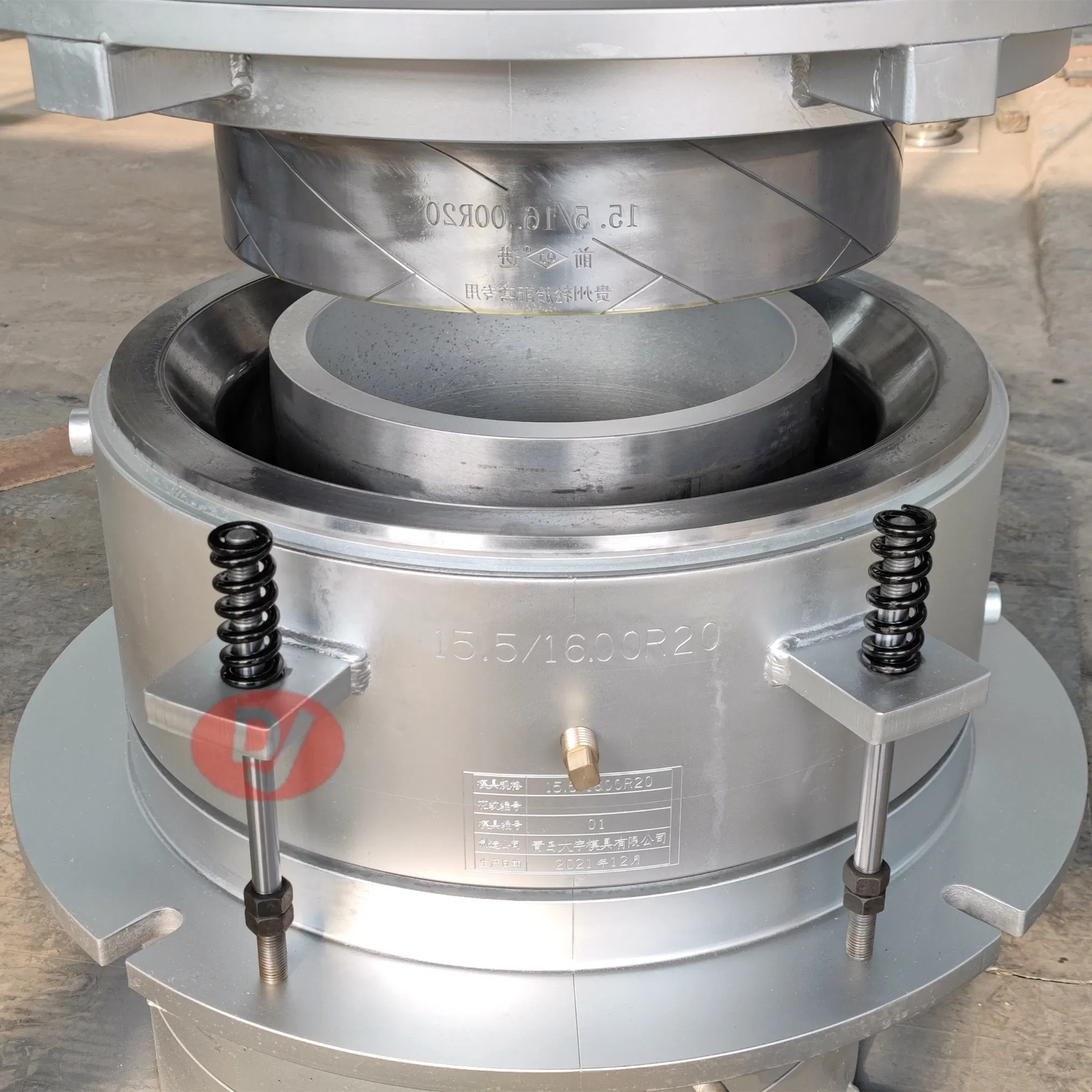

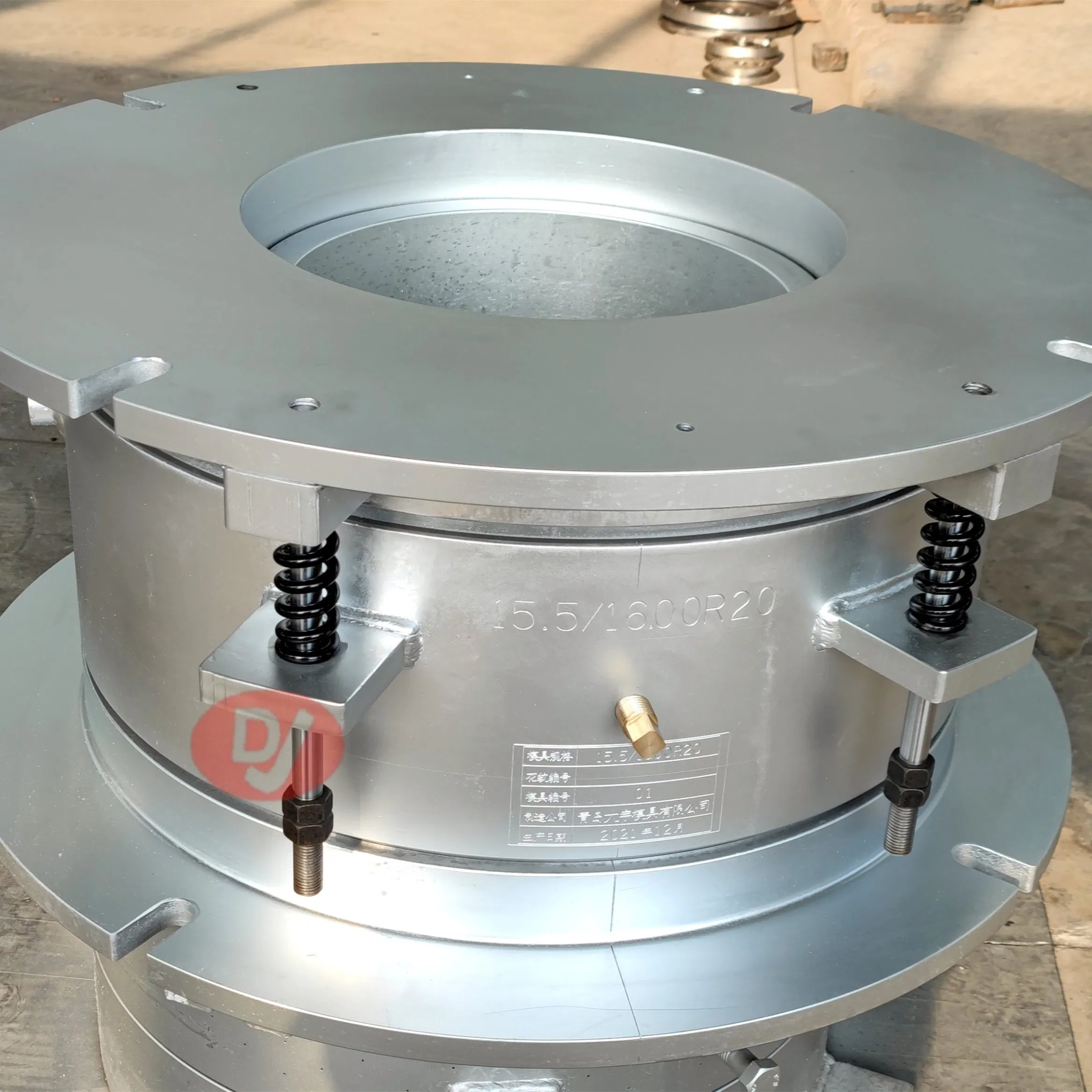

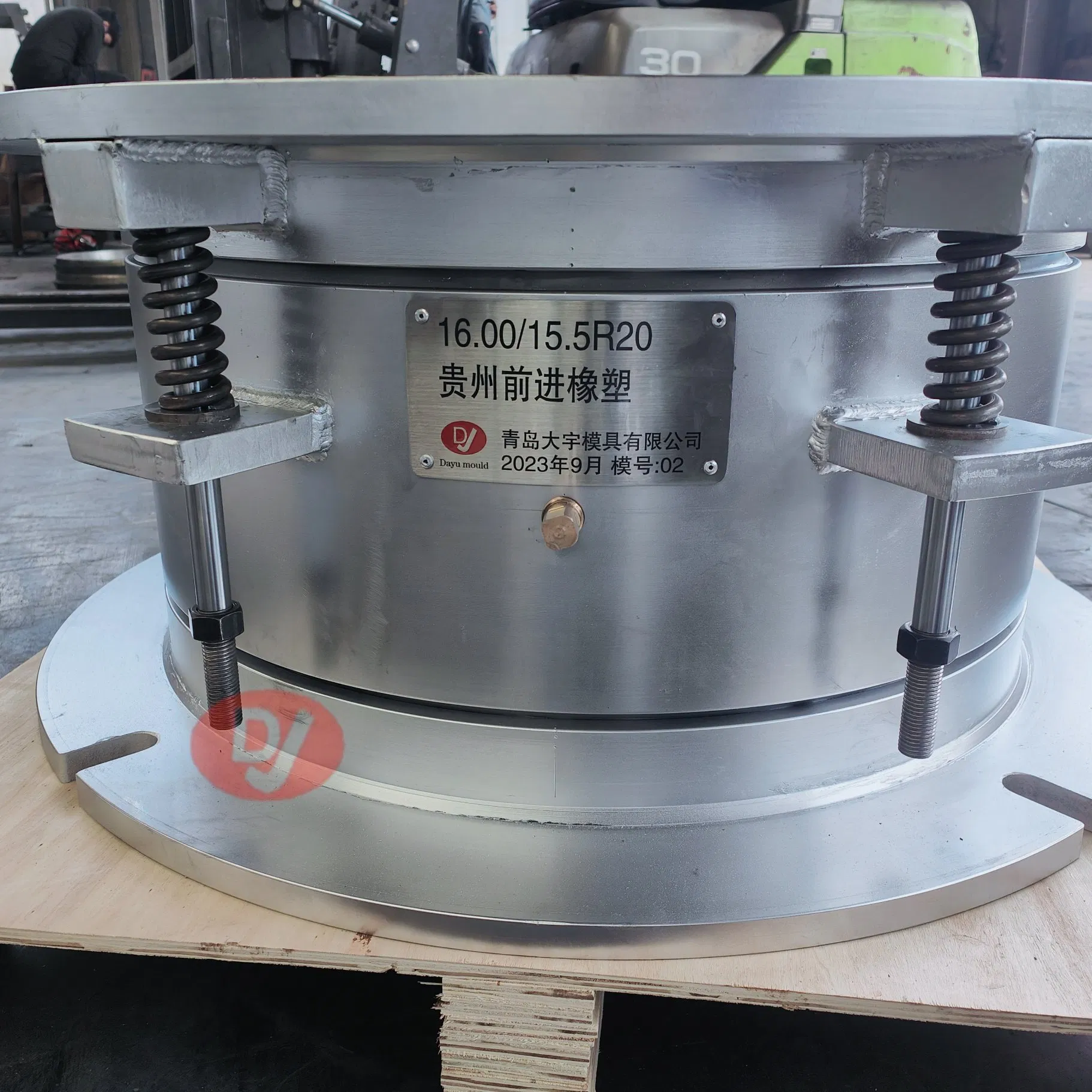

Core Structure of a Flap Mould

A professional compression mould for flaps typically consists of three integrated parts:

• Top plate: Features a recess matching the specific flap profile.

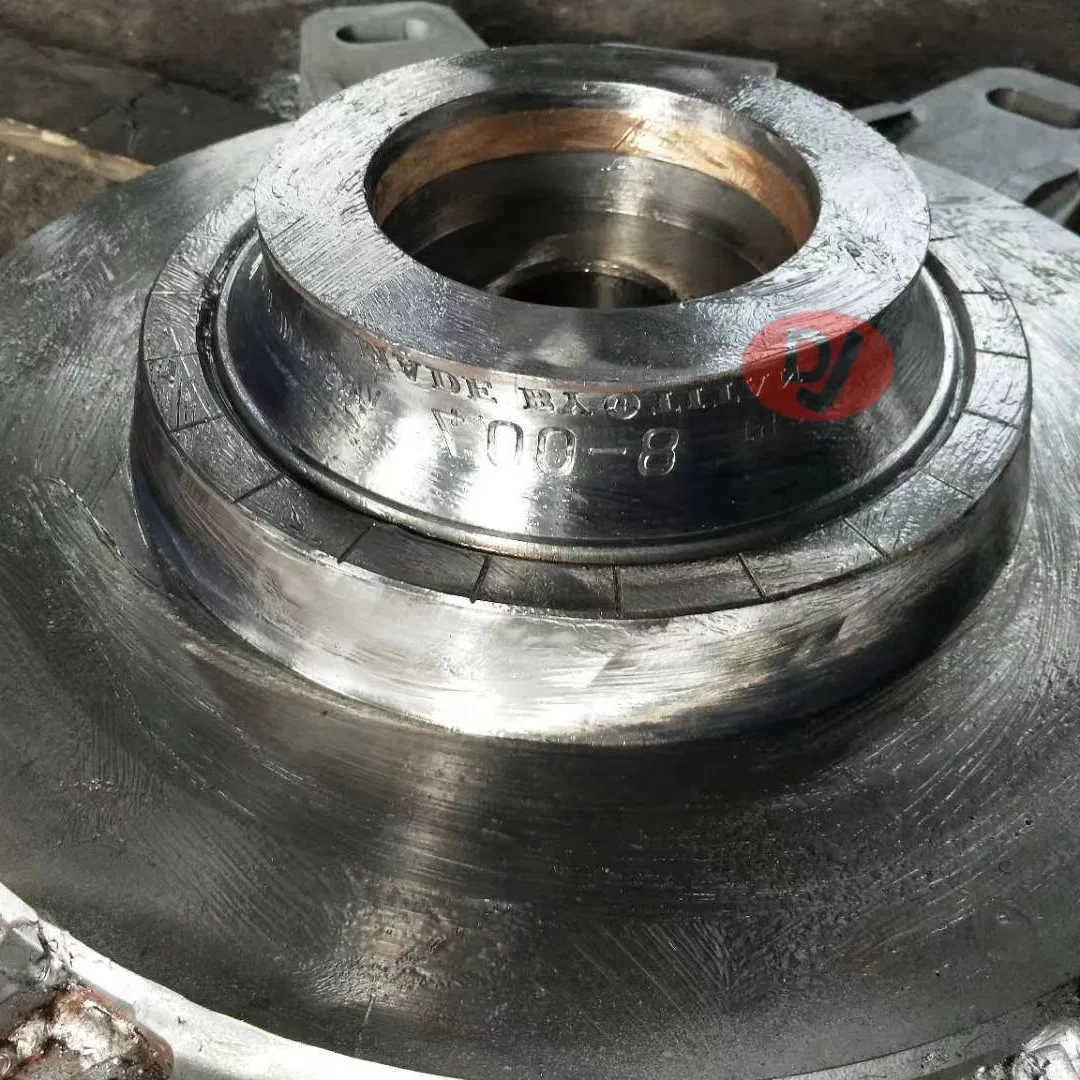

• Middle plate (core ring): The critical component that determines the inner diameter and shape.
• Bottom plate: Equipped with a ring-shaped groove to hold the rubber compound securely.

Technical Advantages

Our modern mould designs provide significant operational benefits:

Dual-compound production: Optimized structures allow for the simultaneous pressing of two different rubber compounds, enabling the creation of flaps with variable density layers.

Efficient demolding: Featuring advanced ejection mechanisms, our moulds facilitate smooth product removal without the need for manual prying, significantly reducing labor and protecting the tool.

Injection precision: Compared to traditional methods, our injection moulds offer superior control over temperature, pressure, and injection speed, resulting in uniform density and dimension stability.

We are a specialized manufacturer dedicated to high-quality industrial rubber processing equipment. Our expertise includes the manufacturing of automatic hydraulic vulcanizing molding machines, frames for dual-tire curing machines, and premium tire molds.

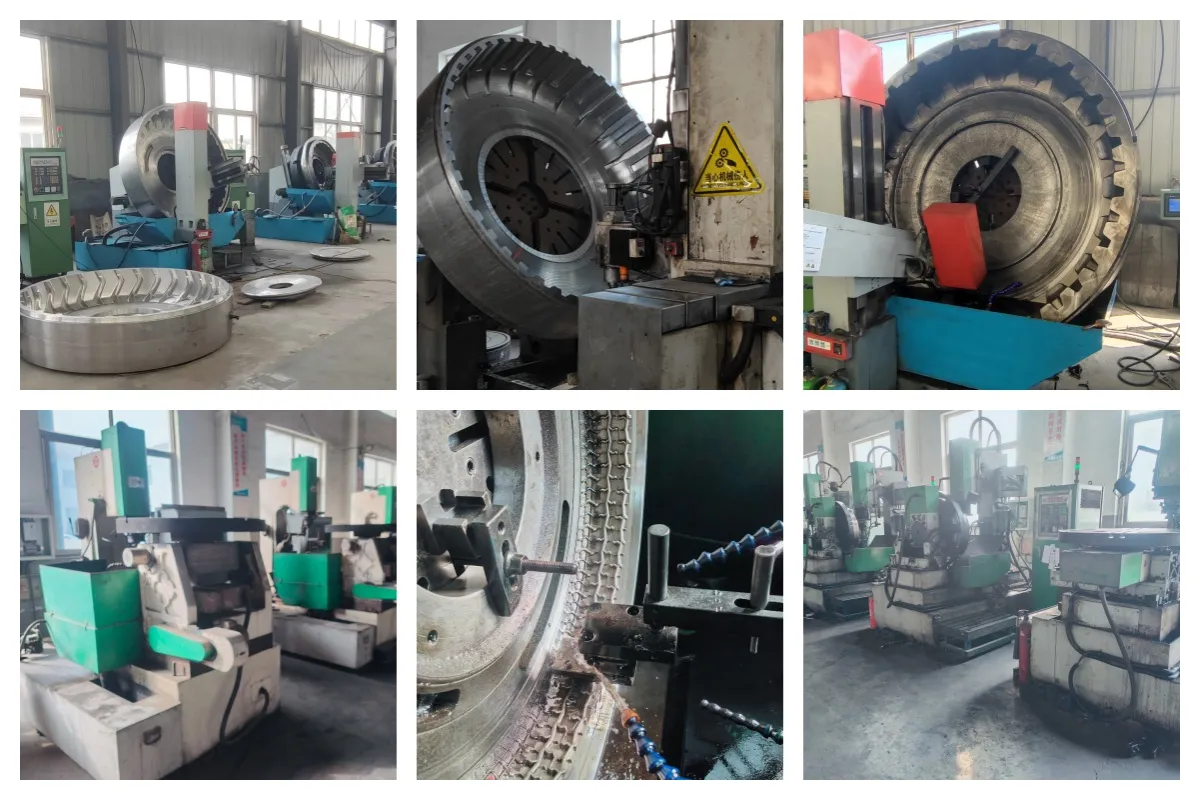

We pride ourselves on technological innovation, utilizing full-CNC machining technology to ensure precision. Our team includes professional technical specialists who focus on R&D and product optimization, serving global markets across Europe, Asia, and the Middle East.
